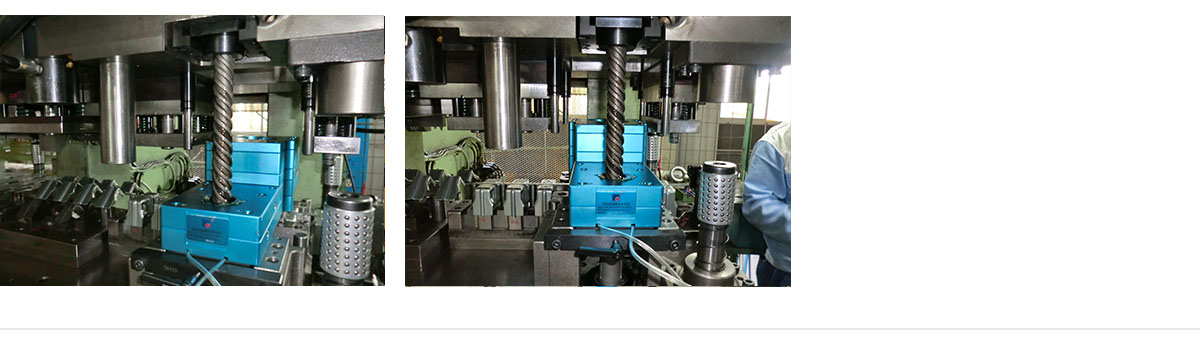

Install the renderings
Configurations
· Screwtap detector.
· Mutifunction secrity detector for tooling.
· Bottom dead centre detector.
· Positioning system for product.
· Thread detector system.
· Screwtap cooling system.

Technical parameter
| Model | 1K | 2K | 3K | 4K | 5K | 6K | 7K | 8K | 9K | 10K |
| Punch Stroke | 50-500mm | |||||||||
| Center distance | — | According to drawing of installation scheme | ||||||||
| Tapping Size | Metric M2 -M12 or corresponding inch UNC/UNF/BSW threads | |||||||||
| Qty of tapping hole | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Installation type | Quick push-in installation with complete machine or split type position installation | |||||||||
| Remarks | Customized | |||||||||

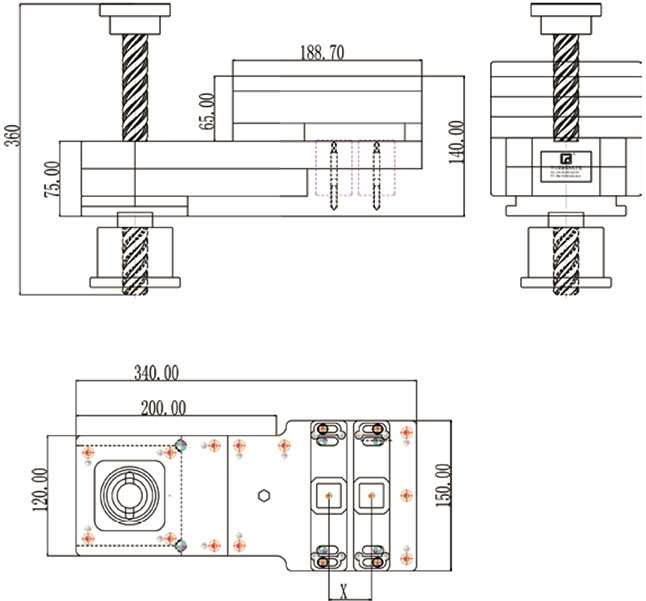

Overall dimension


How to order
DZX-1K-T
DZX-2K-T-W
T:means punch stroke
W:means ceter distance
