X Series of in-Mold Tapping machine
X Series of in-Mold Tapping machine

·  Suitable for punch stroke of 50-500mm.

·  Tapping size is metric thread from M2 to M12 or corresponding inch UNC/UNF/BSW threads.

·  Threads forming of tilt positon with 0-90° direction.

·  Can meet the special requirement of tapping after forming.

·  Quick push-in installation with complete machine or split type position installation.

·  Replace screwtap by dismounting collet alone.

·  Can be customized as special request.



Down
Results Show
Parameter Specification

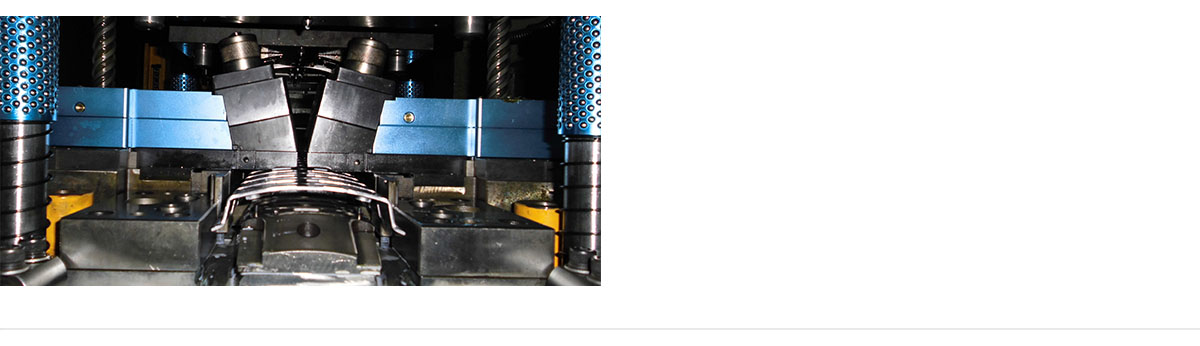

Install the renderings

x.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

1X

2X

3X4X5X6X
Punch Stroke50-500mm
Center distance—According to drawing of installation scheme
Tapping SizeMetric M2 -M12 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole1
23456
Angle of inclination0-90°
Installation typeQuick push-in installation with complete machine or split type position installation
RemarksCustomized



Overall dimension






How to order

DZX-1X-T

DZX-2X-T-W

T：means punch stroke

W：means ceter distance
